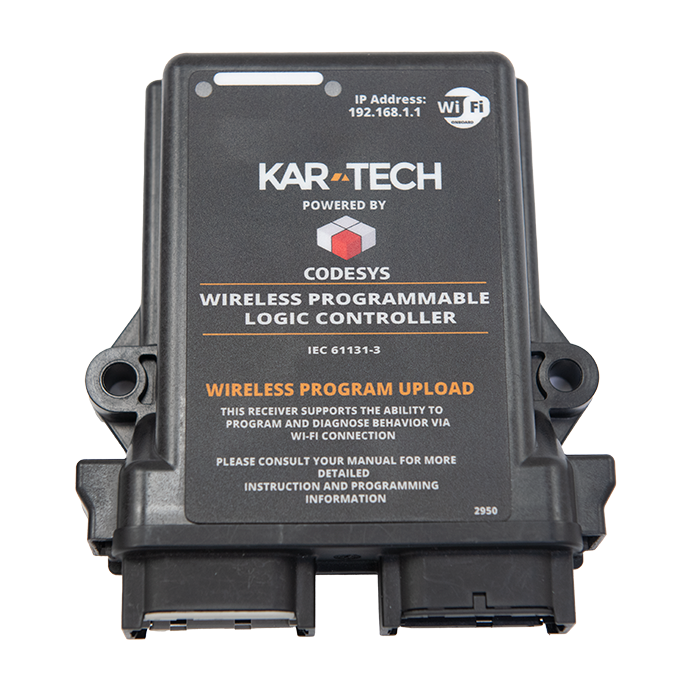

CodeSys Radio Receiver

Kar-Tech’s CODESYS system supports 18 configurable I/O pins supporting
PWM, current-regulated, digital output, digital input, analog input, and
frequency input modes, giving engineers everything they need to build precise

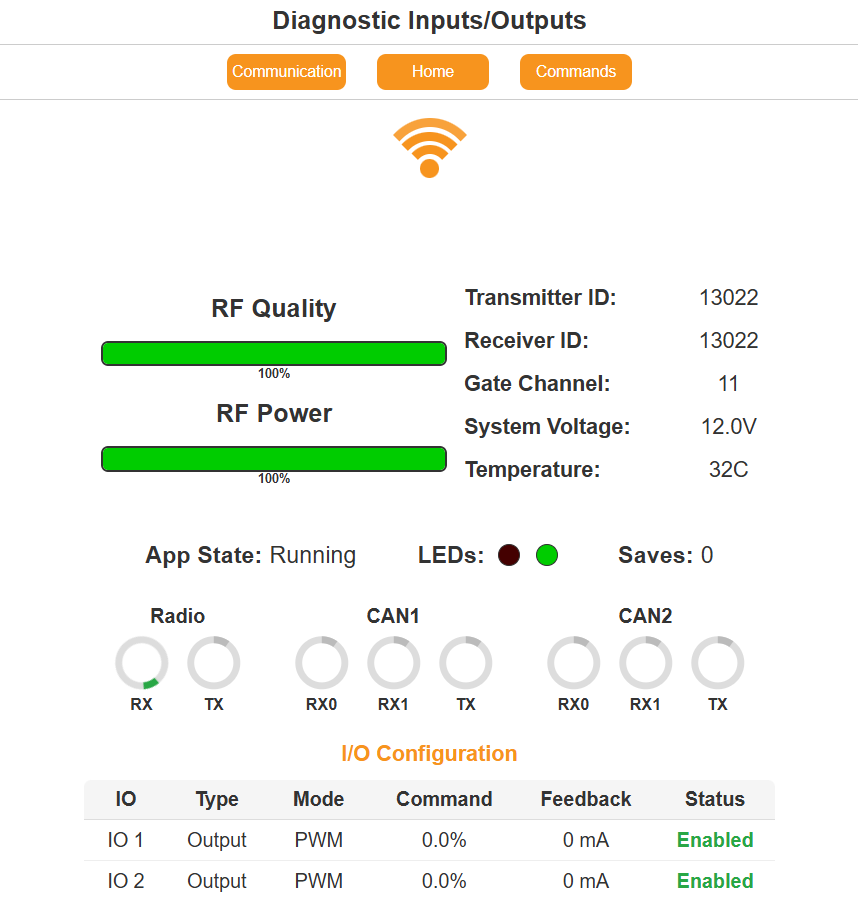

control solutions. Using the industry-standard CODESYS IDE, engineers get live
diagnostics and debugging support directly on the receiver.

The system features a fully integrated radio module with its own programmable
library, dual CAN bus with J1939 support, and up to 1500 persistent EEPROM
variables retained across power cycles. All programming, debugging, and
diagnostics are done completely wirelessly.

No more wrestling with serial cables and harnesses to implement software
changes. Once development is complete, integrators and manufacturers can
generate and distribute boot applications to end users for easy field updates
through the Wi-Fi gate page (without the IDE). With the CODESYS system,
users can worry less about hardware and concentrate more on writing precise
solutions.

Features

ANALOG INPUTS
Up to 18 12 bit inputs. 0-5v, 0-10v & 4-20mA

DIGITAL INPUTS
Up to 18, 30V maximum

PROTOCOLS
CANbus/J1939 (x1), Wifi

ANALOG OUTPUTS
Up to 18- PWM, Current regulated, 0 - 5V, 0 - 10V

DIGITAL OUTPUTS
Up to 18, 5A per output.

AVAILABLE RADIOS
900 MHz. 2.4 GHz, 600,1000 feet Line of sight.

Resources

Looking for something quickly to prototype with?

See what's available in our off-the-shelf systems.

Technical Information

Weight

2.200000

Height

5.50"

Width

5.625"

Depth

2.00"

Ingress Protection

IP67

Operating Temperature

-40° to +85° C

Housing Material

High Temperature Nylon

Storage Temperature

-55° to +85° C

Certification

FCC, IC, C-Tick, Others on Request

Protocols

RS-232, CANbus (2x): SAE-J1939, RF: 900MHz FHSS or 2.4GHZ DSSS, Wi-Fi

Supply Voltage

12V/24V nominal (9V – 30VDC)

Analog Inputs

20 Maximum, 0-32VDC (other ranges available), 12-bit resolution with on-board 5V Reference supply available for sensors. Inputs are protected from overvoltage & transient spikes.

Digital Inputs

20 Maximum — 12/24V nominal input range with protection for overvoltage/transient spike

Frequency Inputs

20 Maximum — 12/24V nominal input range with protection for overvoltage/transient spike

PWM Outputs

4 Maximum (12 current regulated, 1 non-current regulated) 5A max, sourcing

Digital Outputs

20 Maximum

Variable Voltage Outputs

20 Maximum, 0-30V (other ranges available)

**NOTE:

INPUTS & OUTPUTS SHOW MAXIMUMS ONLY. Using all the inputs or outputs of one type may limit other I/O. Please contact us for no-charge application support.

Frequency

900MHz FHSS. With powers up to 100mW

Operating Range

300ft, 1,000ft or 2,500ft (nominal)

Data Sheet

3C0143A.pdf

CodeSys Radio Receiver

Features

Resources

Looking for something quickly to prototype with?

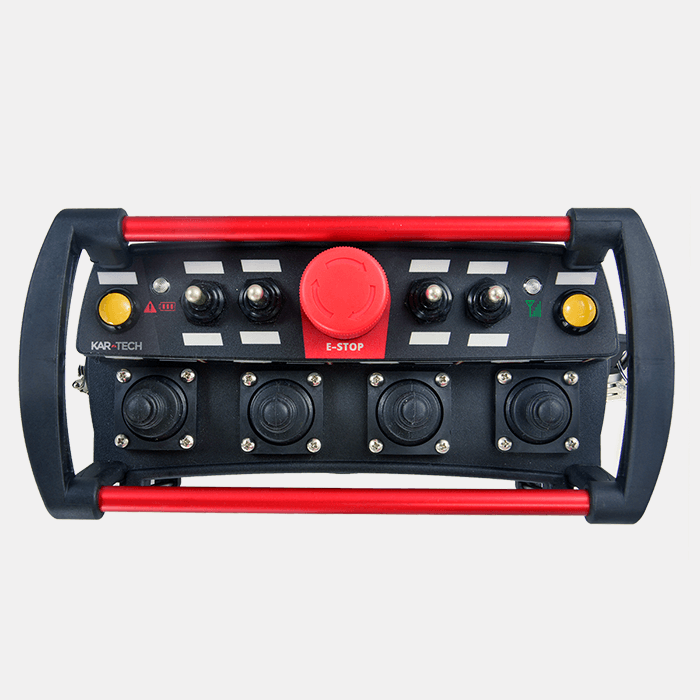

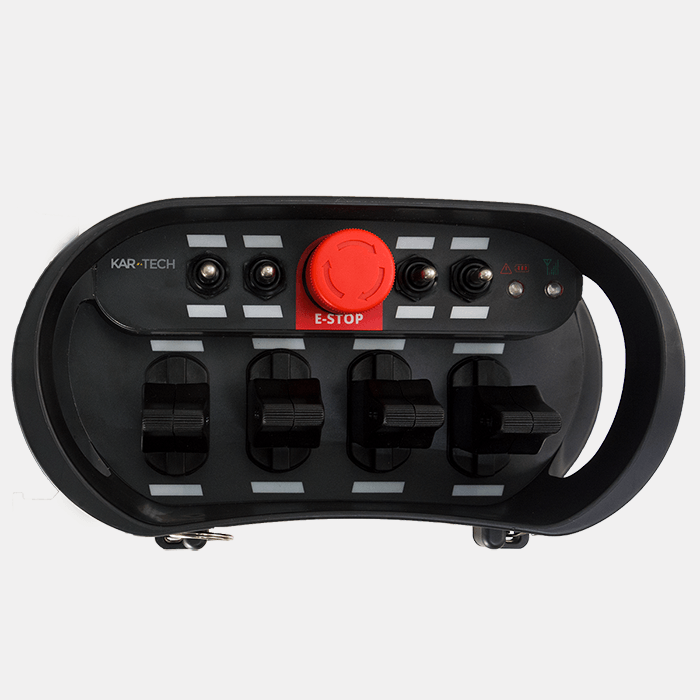

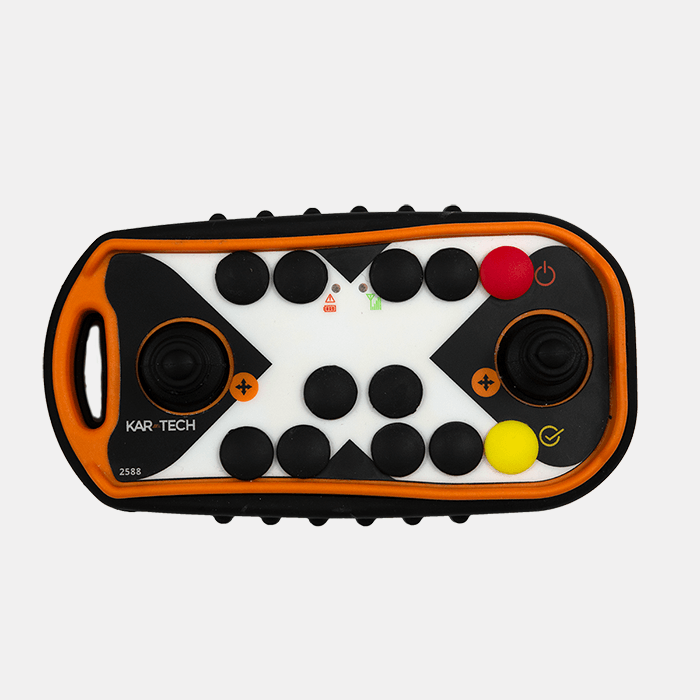

Would you like to customize your Transmitter?
