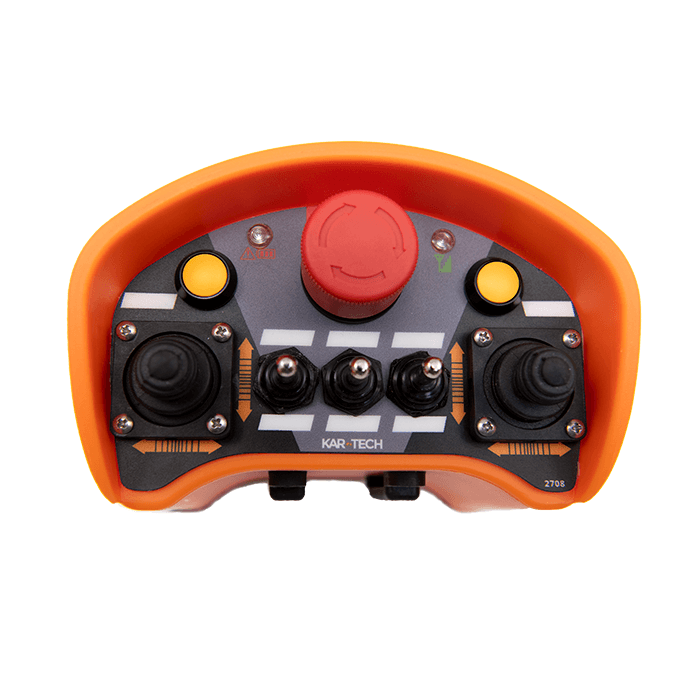

Two Dual Axis Joystick Magnum Transmitter

Voltage Output Radio Receiver

P/N: 3B256QC

DUET radio receiver with 6 Analog outputs (0 to 90% of supply voltage) or ratiometric, 18 on/off or PWM, 6 current regulated proportional outputs and J1939 CANbus for all I/Os. All outputs are sourcing and configurable for all joysticks, potentiometers, and switches. Receiver is designed with Wi-Fi enabled built in Gate for configuration and calibration using smart phones, tablets or computers. All electronics are encapsulated to protect against environment. Includes CANbus connector for tethered connection to the remote

NOTE: This receiver comes with a harness and built-in Gate.

PWM Output Radio Receiver

P/N: 3B2564C

DUET radio receiver with 30 outputs; 12 Current regulated proportional and 18 PWM or on/off, and 3 feet of cables terminated with stripped ends. All outputs are sourcing and configurable for all joysticks, potentiometers, and switches. Receiver is designed with Wi-Fi enabled built in Gate for configuration and calibration using smart phones, tablets or computers. All electronics are encapsulated to protect against environment. Includes CANbus connector for tethered connection to the remote

NOTE: This receiver comes with a harness and built-in Gate.

PLC LEGEND Receiver

P/N: 3C0106B

Revolutionize your mobile hydraulic systems with our PLC LEGEND radio receiver! The PLC LEGEND is a state-of-the-art radio receiver that can be programmed using the CoDeSys platform. We've built an entirely new feature set around our proven circuitry, making the PLC LEGEND the most versatile and user-friendly radio control system in the market.

With its 34 input/output pins, dual CAN, and a processor that runs at over 100MHz, the LEGEND offers enormous flexibility to run with many of our transmitters. Our CAN expansion port also allows for connection to  additional PLC Legend and many of our sensors and linear actuators.

What's truly unique about the PLC LEGEND is that it's the first user-programmable radio control system in the mobile hydraulic market, giving you complete control over your system. You can program it using various methods like structured text, function block diagram, and ladder diagram. It's IEC 61131-3 compliant, making it a true wireless PLC.

The PLC LEGEND is fully sealed and can withstand severe-duty use in mobile hydraulic systems. It can function as a wireless receiver or a standalone hydraulic controller or I/O module for various applications.

Upgrade your hydraulic systems with Kar-Tech's PLC LEGEND, the most advanced and versatile radio receiver in the market. Get started with our free programming environment download and experience complete control over your system today!

PLC LEGEND Receiver 3ft pre-made mating harness

P/N: 011552A

3ft pre-made wiring harness with CAN for PLC Legend

CAN LEGEND Receiver

P/N: 3B256NB

LEGEND series radio receiver with all I/O via J1939. CAN mapping is configurable in the field. The radio provides up to 1,000' of range in a nominal installation. The receiver is designed with built in WiFi Gate for configuration and programing using smart phones, tablets or computers.

NOTE: This receiver comes with a harness and built-in Gate.

CAN Wall Charger

PN: B20072B

110V Wall charger for Kar-Tech remotes with five pin circular screw on style connector. Available with plugs for other countries - please email for more information.

CAN Car Charger

High Gain 900 MHz Dome Antenna
